Using Handheld probes to identify and resolve EMC/EMI issue testing has never been this accurate.
3D Precision Technology used to assist high density board designers to use off the shelf hand-held probes and/or Y.I.C. Technologies probes and visualise the root causes of potential EMC and EMI problems during pre and post EMC compliance testing.
EMProbe delivers repeatable and reliable results that pinpoint the cause of a design failure. As a result, the user can personally test the design without having to rely on another department, test engineer, or time-consuming off-site testing. After diagnosing even an intermittent problem, the engineer can implement a design change and retest. The results provide concrete verification of the effectiveness (or not) of the design change.

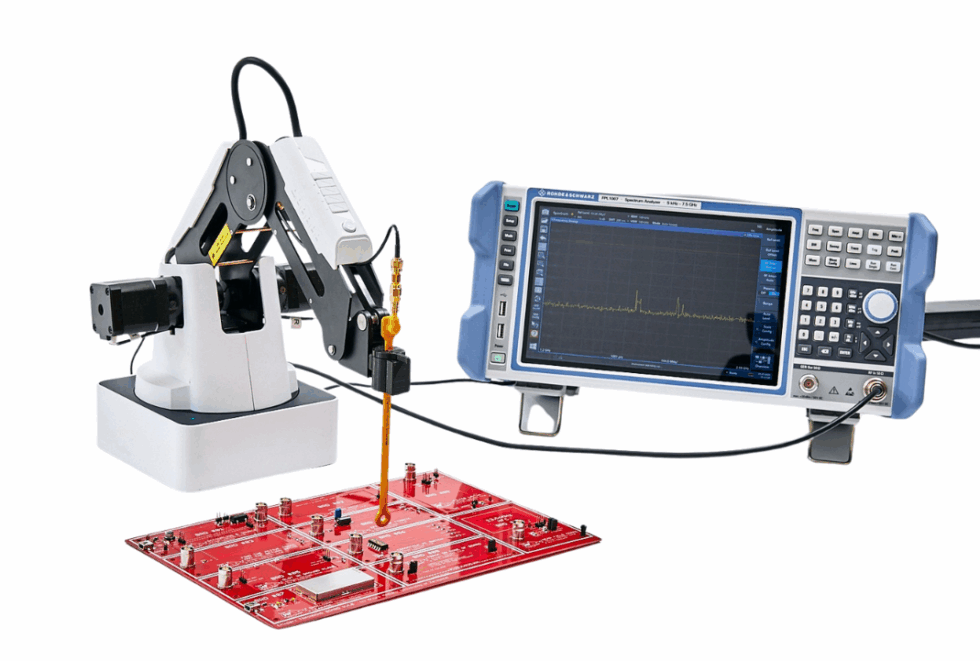

The EMProbe solution consists of a computer controlled Robotic Arm, Near Field probe and a customer-supplied spectrum analyzer, all controlled by the EMViewer Software.
Capability
Spectral scan, spatial scan, peak-hold, continuous scanning, spectral and spatial comparison, scripting, limit lines and report generation.
Supported CAD Overlays
Standard Gerber© RS274x format, HPGL format and JPEG
Supported Operating Systems
Windows 10/11®
Spatial Scan Time
Continuous real-time for entire scan area (1,218 probes activated) when Level 1 selected: 5 sec. Selected area 2.25 cm x 2.25 cm, 9 probes activated. Level 1: <0.5 sec. | Level 2: 4 sec. | Level 3: 9 sec. | Level 4: 21 sec. | Level 5: 55 sec. | Level 6: 2 min 35 sec. | Level 7: 7 min 23 sec. | Level 8: 24 min 00 sec.
Spectral Scan Time
11 seconds for L 10 cm x W 10 cm (L 4” x W 4”, 178 probes activated) from 10 MHz span to 110 MHz and 122 kHz RBW. Scanning area, span and RBW are user selectable within spectrum analyser specifications
Max Frequency coverage
Up to 13GHz with the supplied Y.I.C. Technologies Probes
Spatial Resolution
High Resolution: 7.5mm to 0.2mm
Scan Area
300 mm Radius
Scan Height (Max)
150 mm Radius
Frequency Accuracy of Peaks
Peak marking accuracy of spectrum analyzer
Probe to Probe Uniformity
Dependent on the selected probe
Maximum Radiated Power Load
Dependent on spectrum analyzer and the probe performance
Operating Temperature
From 15⁰ C to 40⁰ C (continuous spectral and spatial scans at 50 MHz)
Scanner Connections
PC: Ethernet
Dimensions of The Scanner
L 34.5 cm x W 43.5 cm x H 11 cm (L 13.58” x W 17.13” x H 4.33”)
Net Weight
3.40Kg (Excluding cables and the adaptor)
Keysight:
N9000A-CXA, N9000B-CXA, N9010A-EXA, N9010B-EXA, N9020B-MXA, N9020A-MXA, N9038A-MXE, N9912A-FieldFox, N9916A-FieldFox, N9918A-FieldFox, N9952A-FieldFox, E4440A-PSA, N9030A-PXA, N9040B-UXA
Rohde & Schwarz:
ZVL, ZVB20, ZNB8, FSW, FSV4, FSV3, FPL
